Description

SNFLS series 480 Side Emitting LED Flexible Light Strip – 5mm DIP LEDs

49.95

SNFLS-x480-5MM series Flexible Light Strips use 5MM LEDs with Narrow 15° beam pattern

Beam Pattern 15 degree Water Resistance[1] Non-Weatherproof Number of LEDs in Unit 480 LEDs LED Type 5mm LEDs per Segment 3 Length 500cm(197in) Lifetime 30000 Hours Lumen 259 Lumen Polarized Yes Standards And Certifications CE/FCC/ROHS Compliant Strip Width 16.6mm Suitable for Vehicles Yes Type Flexible Light Strips/Side Emitting Operating Voltage Range 9~14.8 VDC Wire Length 96.52cm(38in) Dimensions: 500cm(196.85″) x 1.66cm(0.65″) x 0.588cm(0.23″)

All specifications are subject to change without notice
1. IP65 – Product will incur no harmful effects from light water projection.
IP66 – Product will incur no harmful effects from heavy water projection.
IP67 – Product will incur no harmful effects from being submerged up to 1 meter for no more than 30 minutes.
IP68 – Product will incur no harmful effects from being submerged beyond 1 meter.
Part NOTotal LengthEmitting ColorCCT / Wavelength [1]Intensity Per FootIntensityRadiant PowerCurrent Draw per Foot @ 12 Volts DC [2]Current Draw @ 12 Volts DC [3]Max Run [4]CRIPrice
SNFLS-UV480-5MM500.00cm (16.40ft)UV400 nm29261 mcd/ft480000 mcd–110 mA (1.3 W)1800 mA––$59.95
SNFLS-CW480-5MM500.00cm (16.40ft)Cool White6500 K16 lm/ft259 lm–116 mA (1.4 W)1900 mA–77$59.95
SNFLS-B480-5MM500.00cm (16.40ft)Blue460 nm160934 mcd/ft2640000 mcd–116 mA (1.4 W)1900 mA––$59.95
SNFLS-WW480-5MM500.00cm (16.40ft)Warm White2700 K16 lm/ft259 lm–110 mA (1.3 W)1800 mA–60$59.95
SNFLS-R480-5MM500.00cm (16.40ft)Red630 nm146304 mcd/ft2400000 mcd–122 mA (1.5 W)2000 mA––$49.95
SNFLS-Y480-5MM500.00cm (16.40ft)Yellow590 nm163860 mcd/ft2688000 mcd–135 mA (1.6 W)2200 mA––$49.95
SNFLS-G480-5MM500.00cm (16.40ft)Green520 nm234086 mcd/ft3840000 mcd–110 mA (1.3 W)1800 mA––$59.95
1. White LED Note: Correlated Color Temperature measured in Kelvin, higher numbers indicate blue/purple tint (similar to HID lamps), standard incandescent bulbs are around 3000K
2. Maximum current is based on maximum intensity of all circuits(Bright White).
3. Maximum current is based on maximum intensity of all circuits(Bright White).
4. Maximum number of units in one run (end to end) – for higher quantities, multiple runs back to the power supply must be made to prevent excessive voltage drop
All specifications are subject to change without notice

<!–

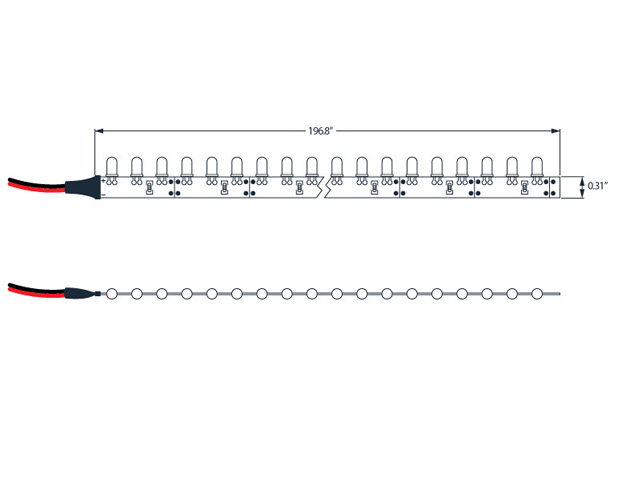

SNFLS-x480-5MM

–>
