1156 LED Bulb – Single Intensity 30 LED-LED Car Bulb

Description

1156 LED Bulb – Single Intensity 30 LED

Base1156 (BA15S)LED Amount30 LEDsLED Type5mmLifetime10000 HoursLumen80 LumenOperating Temperature-30~+85 °COversizeYesPolarizedYesStandards And CertificationsCE/FCC/ROHS CompliantStorage Temperature-40~+100 °CTypeReplacement BulbOperating Voltage9~14.8 VDCReplaces Stock Bulb: 1073, 1095, 1141, 1156, 1156A, 1156NA, 1195, 12088, 1295, 1295NA, 199, 2396, 3497, 631, 7506, 93, 97, 97A, 97NA
Part NOCCT / Wavelength [1]MCD per LEDIntensity per LEDLumenMillicandela [2]Beam PatternCurrent Draw @ Operating VoltagePrice Ea.
1156-R30628 nm5000 mcd18 °100 mA
(@ 13.5 VDC)
$8.99
1156-R30-WV628 nm5000 mcd100 °100 mA
(@ 13.5 VDC)
$8.99
1156-A30593 nm5300 mcd18 °100 mA
(@ 13.5 VDC)
$8.99
1156-A30-WV593 nm5300 mcd100 °100 mA
(@ 13.5 VDC)
$8.99
1156-W308500 K80 lm7500 mcd18 °100 mA
(@ 13.5 VDC)
$14.99
1156-W30-WV6500 K80 lm7500 mcd100 °100 mA
(@ 13.5 VDC)
$14.99
1156-G30532 nm13200 mcd18 °100 mA
(@ 13.5 VDC)
$16.99
1156-G30-WV532 nm13200 mcd100 °100 mA
(@ 13.5 VDC)
$16.99
1156-B30-WV474 nm2850 mcd100 °80 mA
(@ 13.5 VDC)
$15.99
1156-B30474 nm2850 mcd18 °80 mA
(@ 13.5 VDC)
$15.99

1156-R30 with clear housing
(Fits BA15S Sockets)

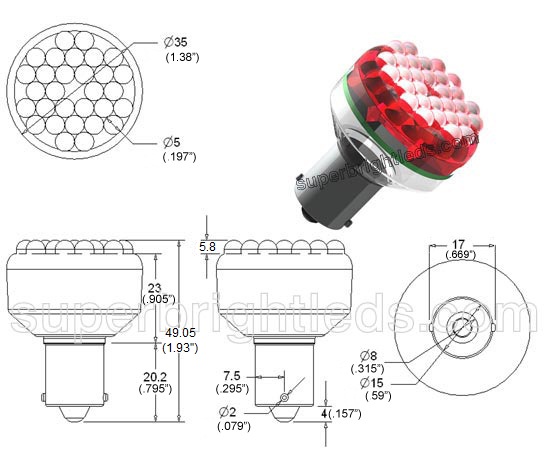

diagram
Dimensions in millimeters (inches)
Note: These bulbs are oversized – please measure your bulbs housings and see dimensional drawing above to determine if they will fit your application. Forcing them into sockets where they will not fit can break off the locking pins and void the warranty
